  • In nature the element Titan resembles stability, liability and sturdiness at comparable low weight. These key factors were the main drivers for the development of a new machine generation. Titan series shredders use adaptive technology to process different materials. By optimizing the machine concept and the associated production process, the investment costs could be made more attractive in the customer sense.

    Winning Arguments

    • est price-performane-ratio in its class – Up to 20% lower investment costs compared to the previous series

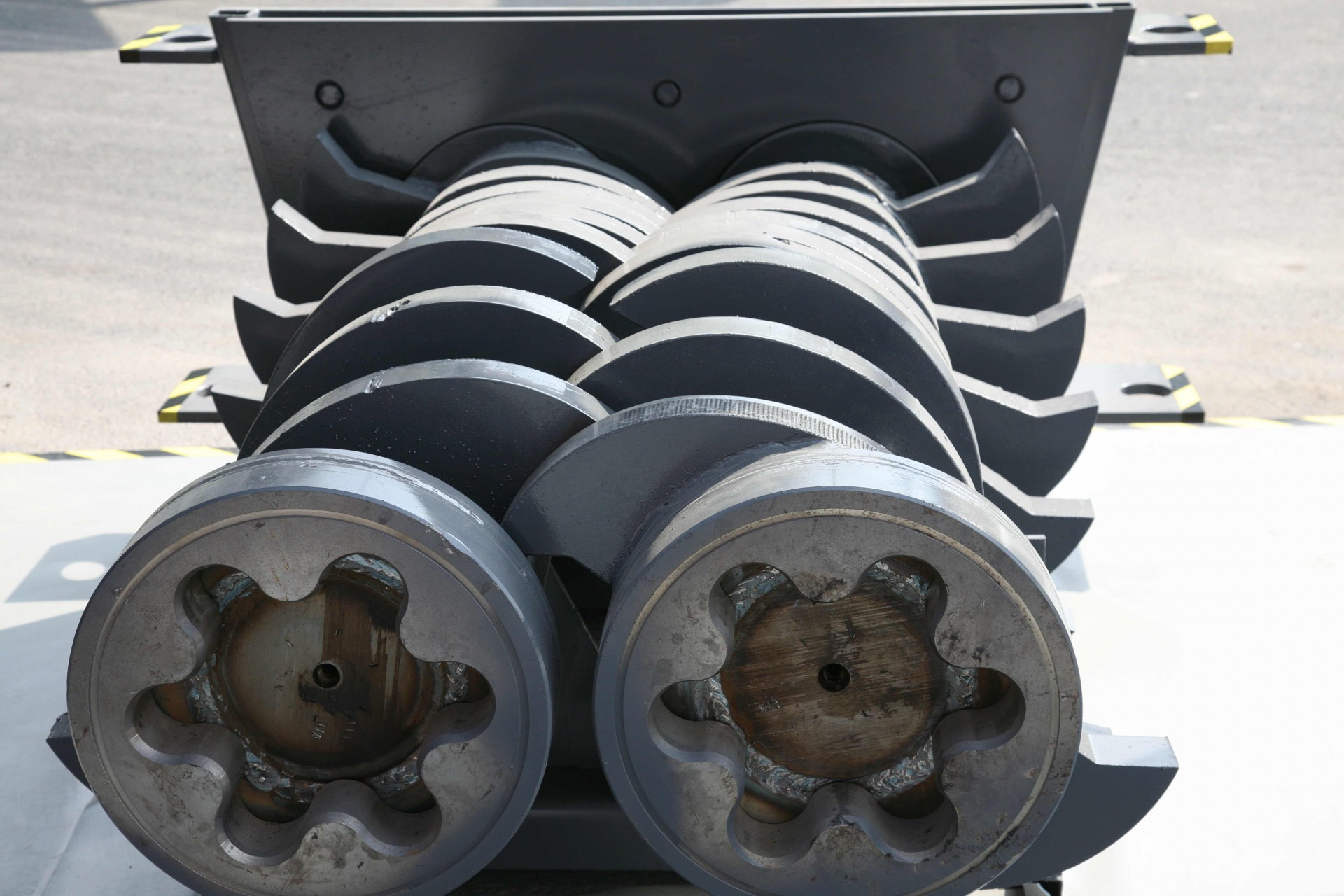

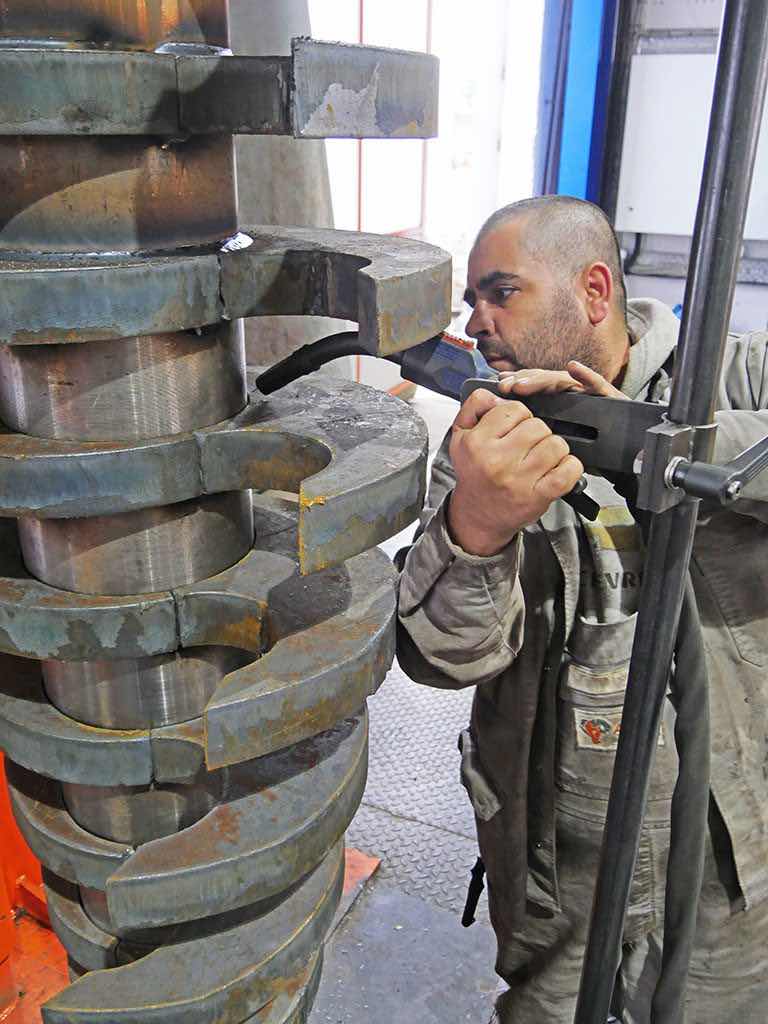

    • Quick-change shaft system for easy maintenance and reduced machine stops
    • Multiple material options with just two types of shafts
    • Tracks included in the price – increased mobility on every terrain!
    • Easy to transport and adjust – 20 % less weight compared to the previous series

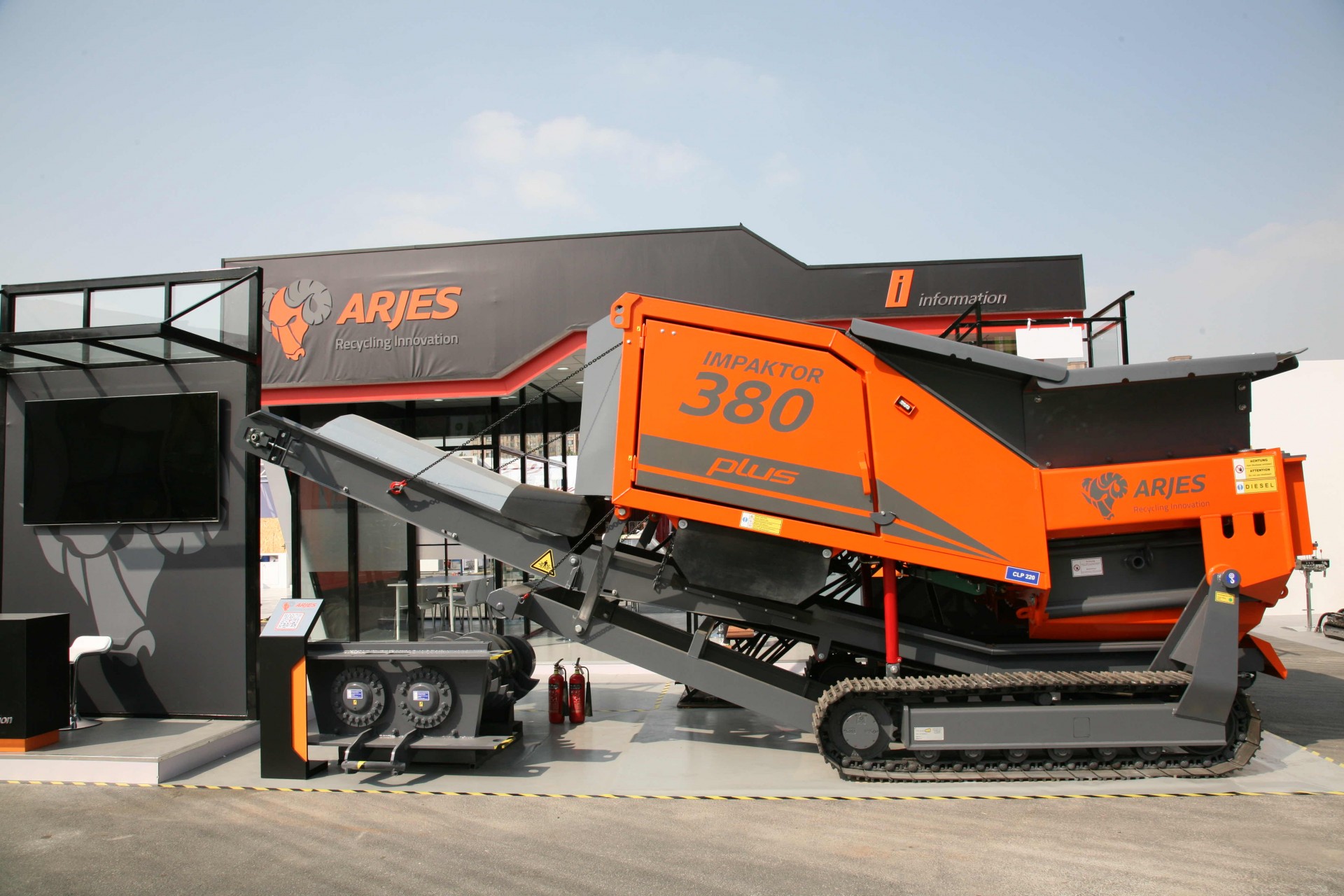

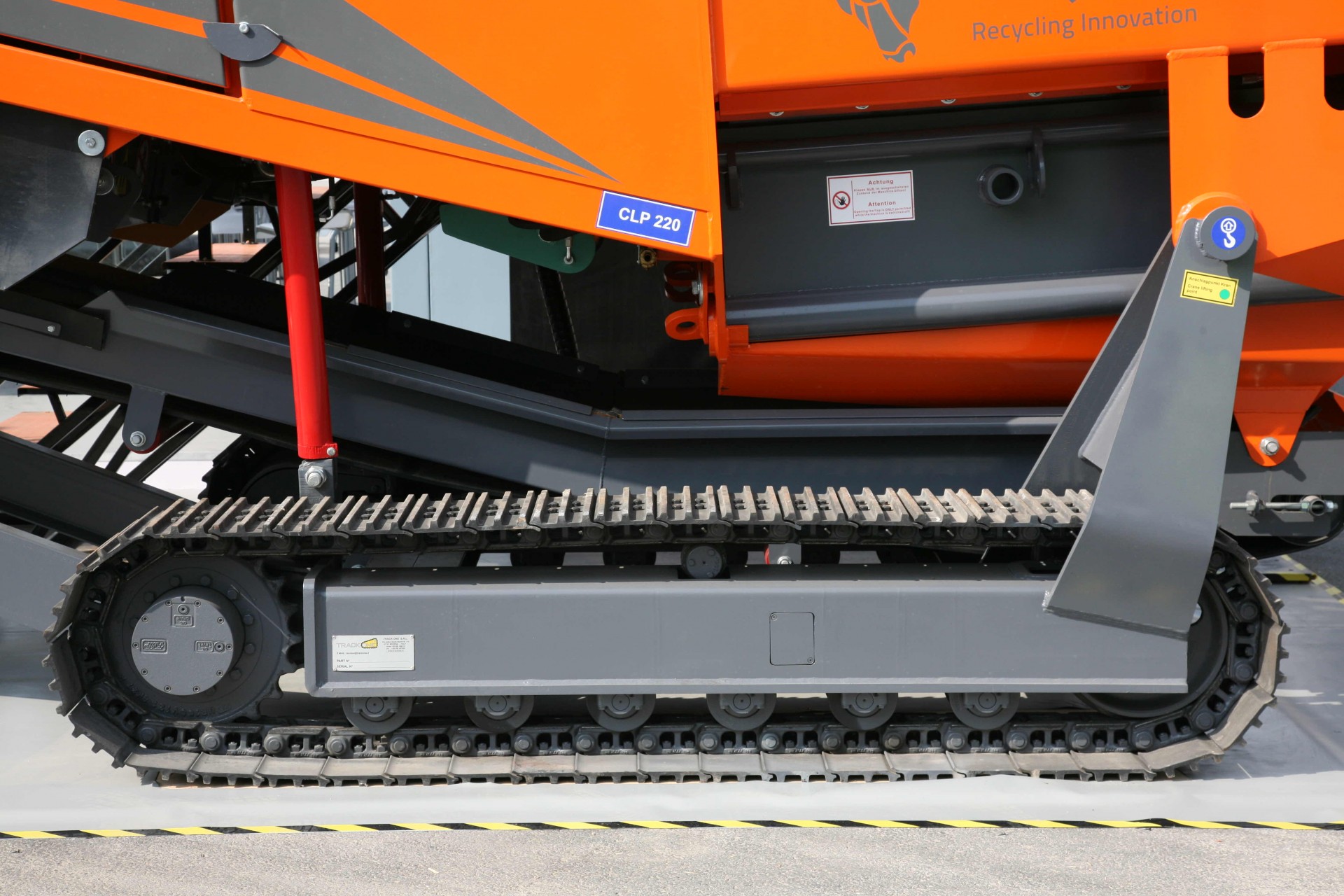

  • Diesel Tracks (DK)

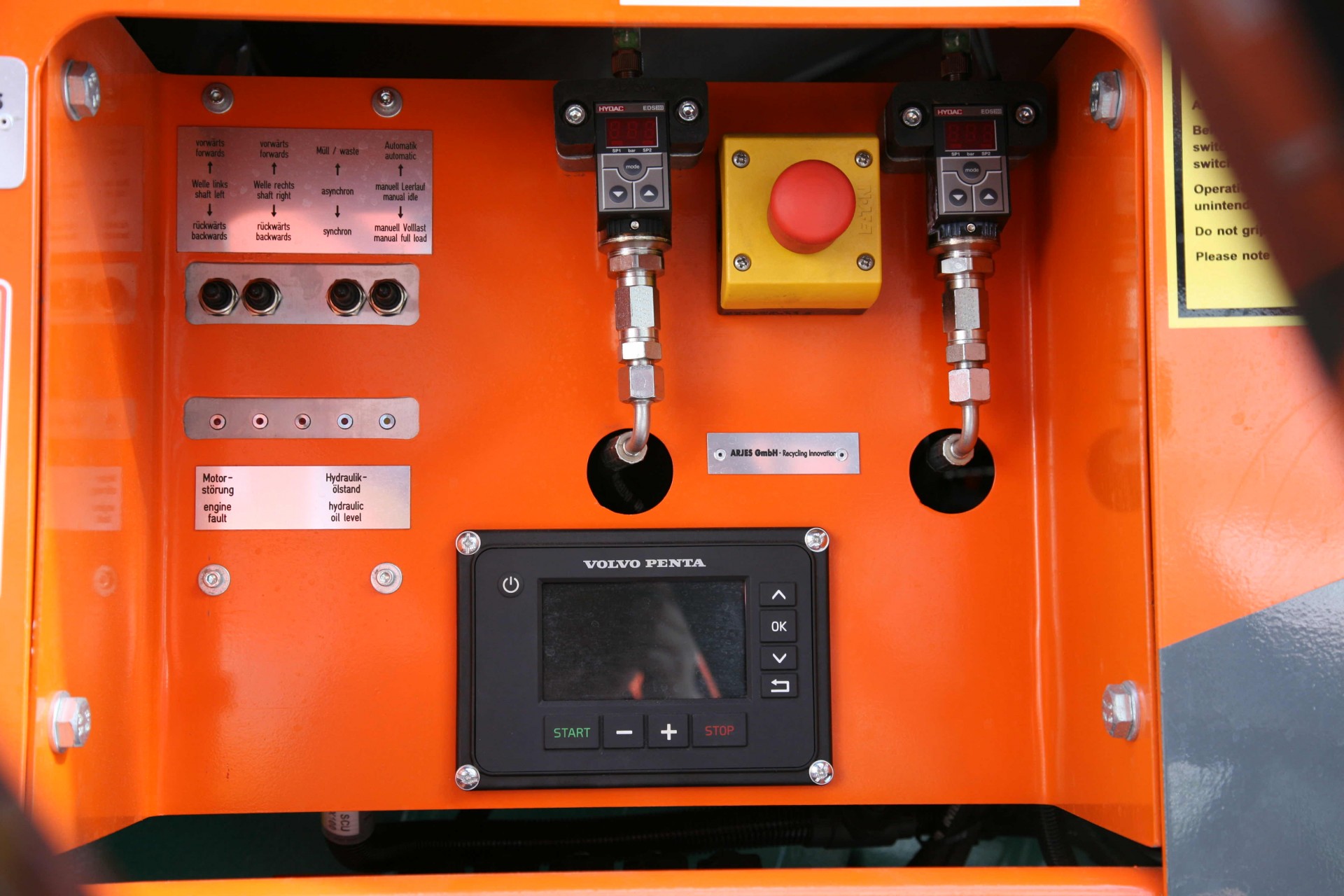

    For mobile use, we offer the version with track system. This allows the machine to be moved to a new location independently without any other equipment. This model is also designed for use in rough terrain. In addition, the chassis can be equipped with rubber track shoes to protect the surface. It is controlled by a multi-channel radio remote control.

    Electric Drive (E-PU)

    For all situations where special requirements for exhaust and noise emissions apply, we offer a version with an electric engine (power unit). It is also possible to divide the shredder into several components in order to meet structurally relevant specifications.

  • MEASUREMENTS
    Model Tracks
    Length (mm) 10.800 / 11.500 (Transport)
    Width (mm) 3.000 / 3.000 (Transport)
    Height (mm) 4.300 / 3.600 (Transport)
    Total weight (kg) 32.000

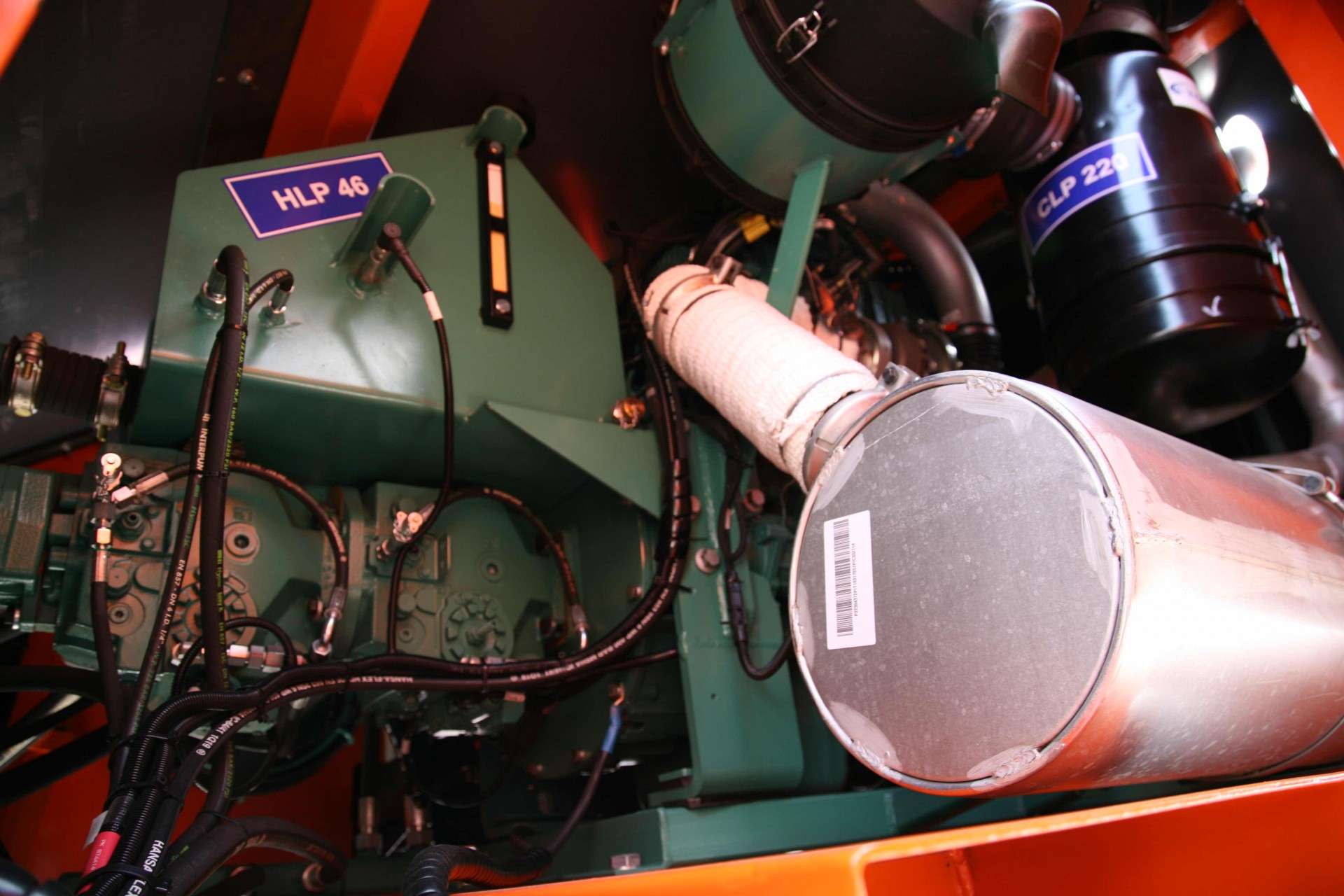

    DRIVE

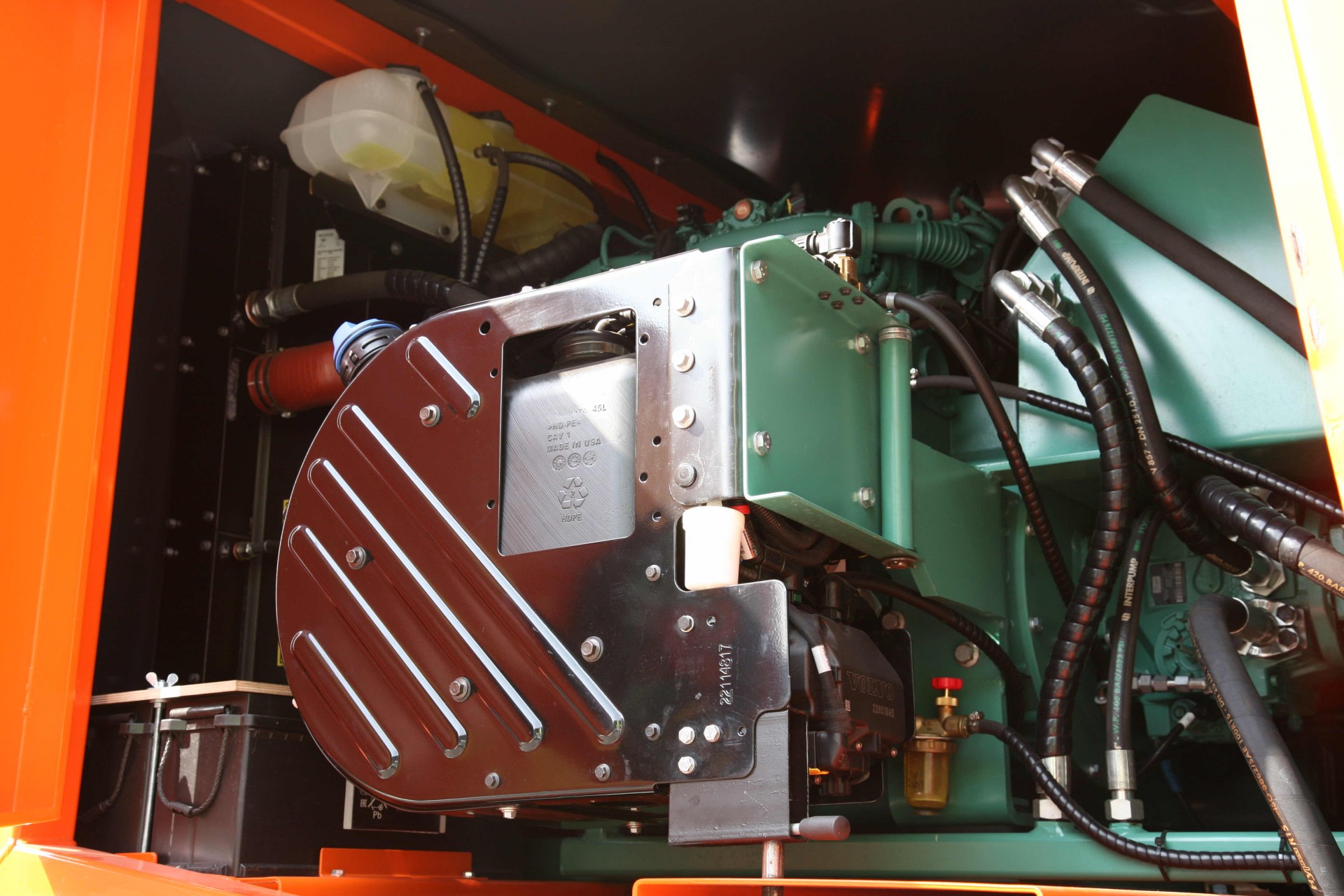

    Engine Volvo Penta TAD1643VE
    Emission stage EU Stage II/EPA Tier 2
    Power (kW/PS) 565/768
    Fuel tank (l) 800
    Torque (Nm) 500.000

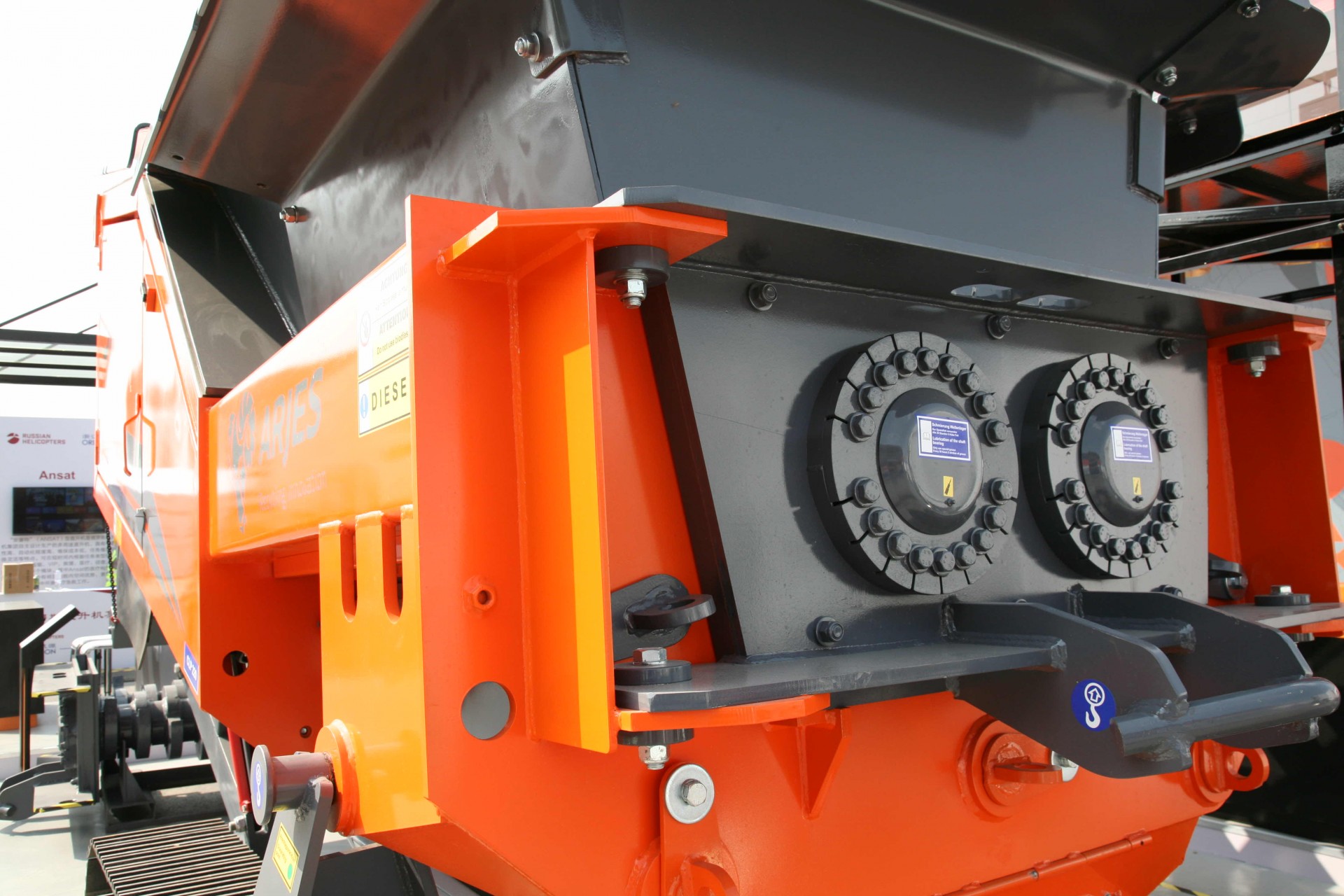

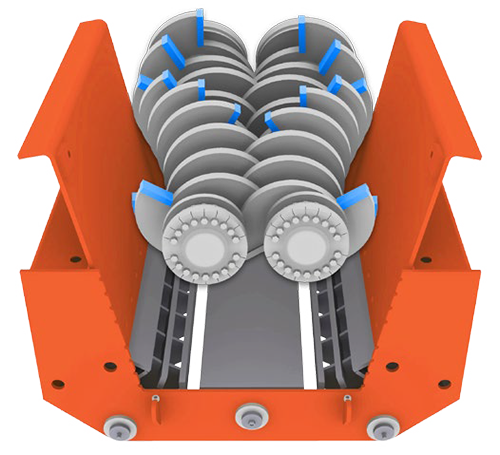

    SHREDDING UNIT
    Hopper volume (m³) 5
    Shaft length (mm) 2.500
    Shaft diameter (mm) 800
    Weight (kg/cassette) 7.300
    Rotational speed (U/min) 15-45

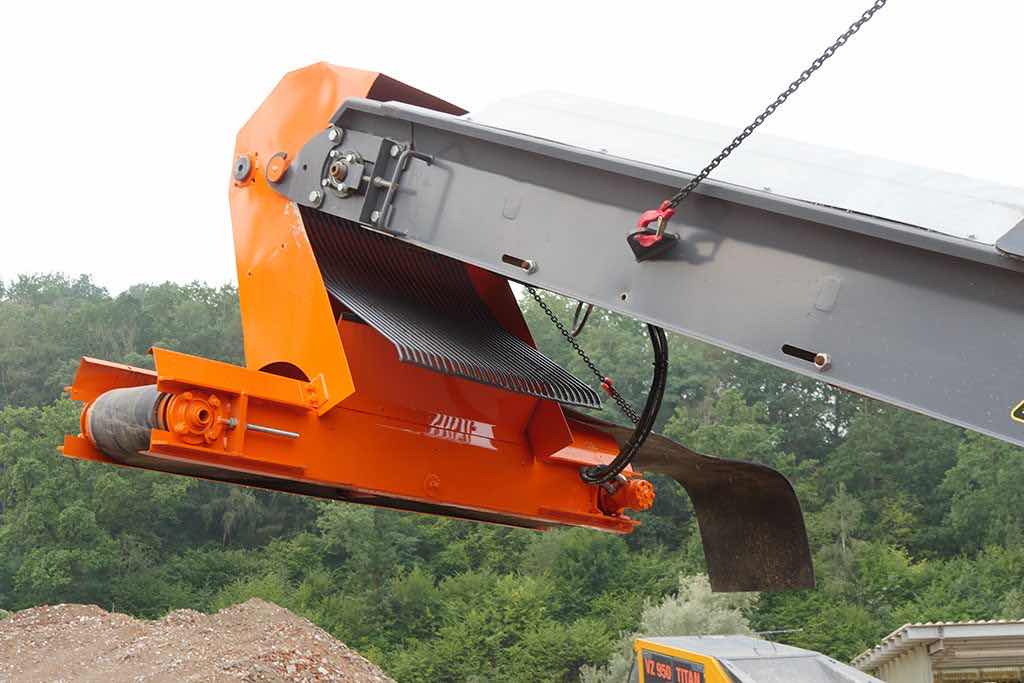

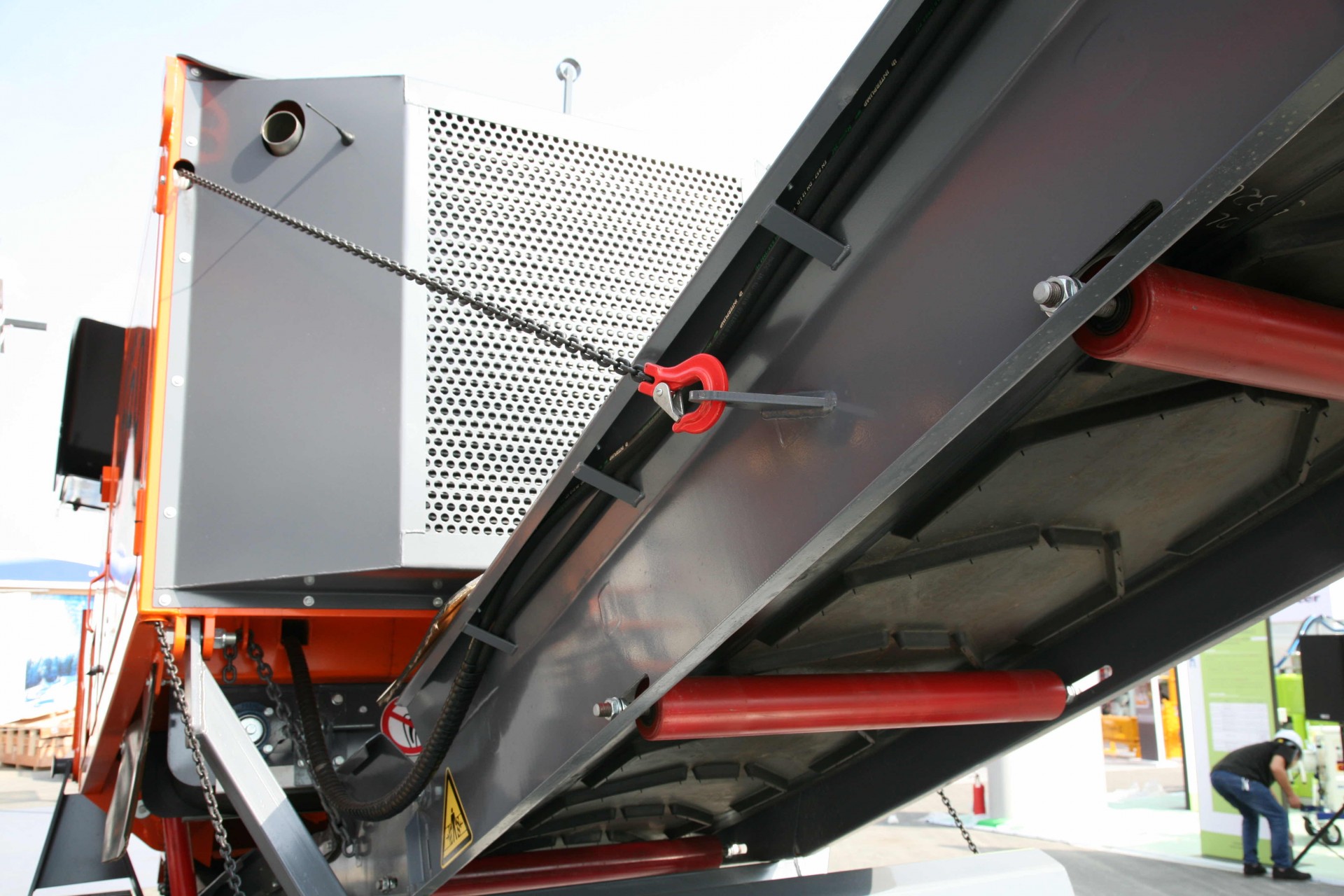

    DISCHARGE BELT
    Discharge height (mm) 3.800
    Width (mm) 1.200
    Options Magnet, Side belt

    Technical changes, print errors and mistakes reserved. All data are approximate values of the standard model without options. Latest revision: May 2018

  • 废木柴

    处理A1至A4类废弃木材,如拆除用木材、电缆卷筒和托盘,用于材料或热回收

    更多+

    生物量

    为生物发电厂有效利用有机固体资源,通过处理绿色废弃物和树枝。

    更多+

    茎木和根

    大量的茎材、根茎和伐木残余物首先被我们侵略性的开膛钩破坏。

    更多+

    废物和塑料

    切碎生活垃圾和工业垃圾节省了垃圾填埋场的空间,并能对有价值的资源进行分类和分离。

    更多+

    废金属和汽车

    通过专用轴和异步驱动减少有价值的黑色金属和有色金属的体积。

    更多+

    C&D Debris

    在施工现场,需要减少混凝土、沥青、瓷砖等碎片的体积,以便进行处理和处置。

    更多+
